Product Overviews

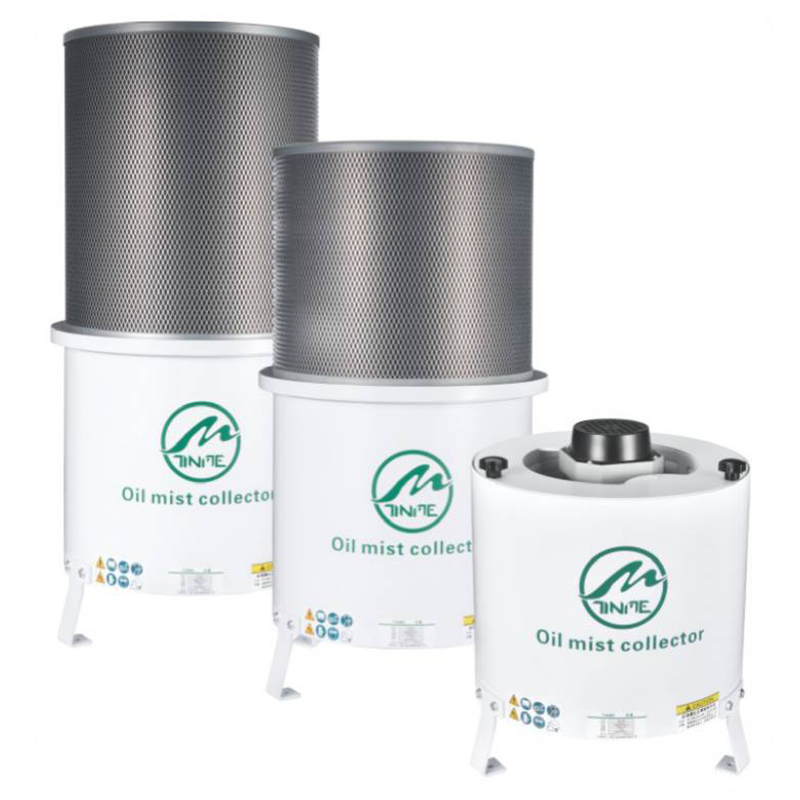

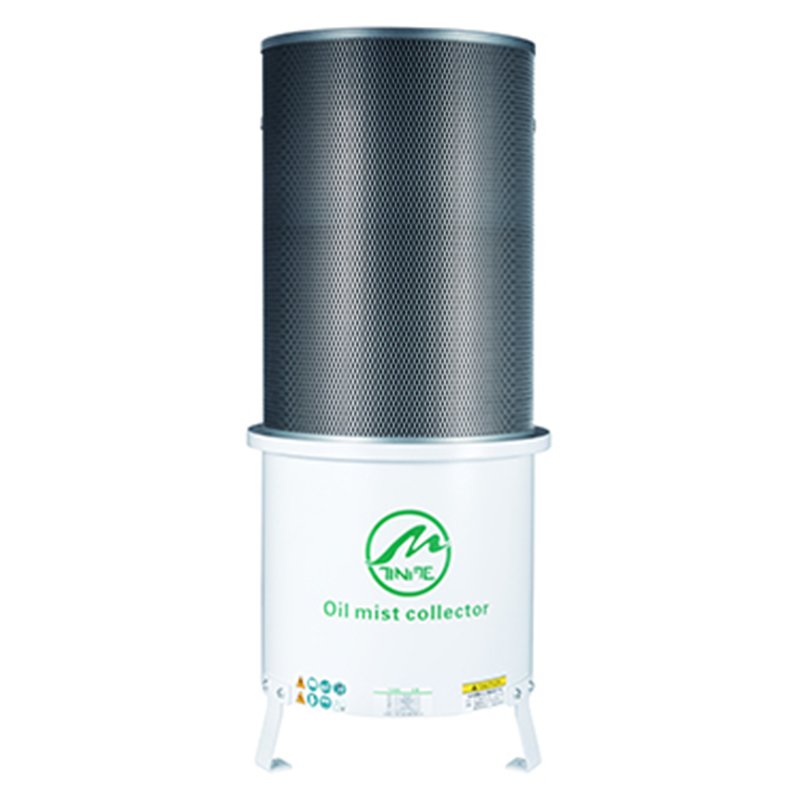

cnc machine oil mist collector purifier
Model | TM-250A | TM-370A | TM-750A | TM-1100A |
Power Supply | Phase 220V/380V (50Hz/60Hz) | |||
Motor(kw) | 0.25 | 0.37 | 0.75 | 1.1 |
PEED | 2,850 rpm | |||
Wind Flow Rate(m³/h) | 600 | 1000 | 1400 | 1800 |
Inlet(Φ,mm) | 125 | 150 | 150 | 150 |
Weight(kg) | 23 | 36 | 40 | 52 |
Size(Φ*H,mm) | 390*820 | 440*950 | 480*950 | 540*1150 |
Above specifications are based on 50Hz,when applying 60Hz air volume will increase. |
Features

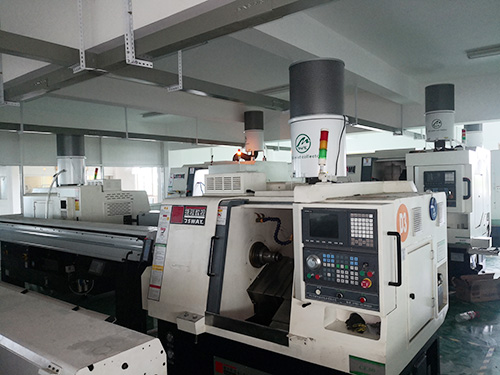

TINME is a centrifugal oil mist filter for mist generated from neat oil and emulsions used in machine tools, also suitable in the presence of particulate. It is designed to be mounted to the machine tools.
(1)Polluted air is drawn from machine tool into the lower pre-chamber (A) of TINME.
(2)The acceleration effect, due to the centrifugal force generated by a rotating turbine, makes the oil particles bind together and return to liquid state, using the coalescence principle.
(3)A special Multilayer filter (B) having high filtration efficiency, stops and catches even the smallest pollutant particles, avoiding their dispersion in environment.
(4)Due to a special drainage tube (C) the liquid oil is sent back to the machine tool, to be re-used in working process.
HIGH FILTRATION LEVEL AND LONG LASTING FILTERS
The combination of the turbine centrifugal action and a high efficiency multilayer filter set guarantees a high filtration level. Filters are positioned after the centrifugal action of the turbine, thus they are exposed to a limited amount of polluting agents, having a small size. This location grants TINME filters a longer life than the one of the most common centrifugal or static filters in the market.
REDUCED ELECTRICAL CONSUMPTION
TINME uses energy saving motors with high efficiency and very low power (KW)
TESTED MATERIAL FROM TINME
TINME internal materials passed compatibility stress tests, carried on with different types of neat oils and emulsions in the market.
SPECIAL TURBINE
Designed for avoiding dust settlement on its surface, secures no vibrations also in case of big quantities of particulate.
QUICK AND EASY MAINTENANCE
Internal filters can be cleaned or changed simple opening of a cover
Post-filter (HEPA)
Post–filter cartridge for micromist, smoke and vapor. It allows to reach a high filtration level up to 99.97%. (0.3um) The PM2.5 content in the filtered air meets international standards.
After filter, the PM2.5 content in the filtered air meets international standards.
Before After
Company Profile
TINME is the brand of oil mist collector. TINME has passed the CE certification. Our products can be used to all kinds of Machining tools like drilling and tapping machine, engraving and milling machine, CNC lathe, grinding machine, rolling machine, sawing machine and etc.
Since our establishment, we have always been adhering to the business philosophy of professionalism, seriousness, fastness, keeping promises, people-oriented, customer first, and the pursuit of credibility. In line with customer satisfaction as the orientation, continuous improvement as the driving force, through our hard work and the strong support of friends in the industry and abroad, we have made great progress in all aspects. With the tenet of the supremacy of credibility, we establish a wide range of customers and cooperate sincerely. We have been cooperating with customers and have won praises from many customers.
Your demand is our affirmative support. In the future, we will continue to strive for high-quality services and reasonable prices to meet the needs of all customers for a long time. Sincerely look forward to working with all customers to create the future and create a win-win situation!
