Capture at the machine
Draw oil and coolant mist from the enclosed machine tool into a controlled filtration path.
Workshop oil mist solutions

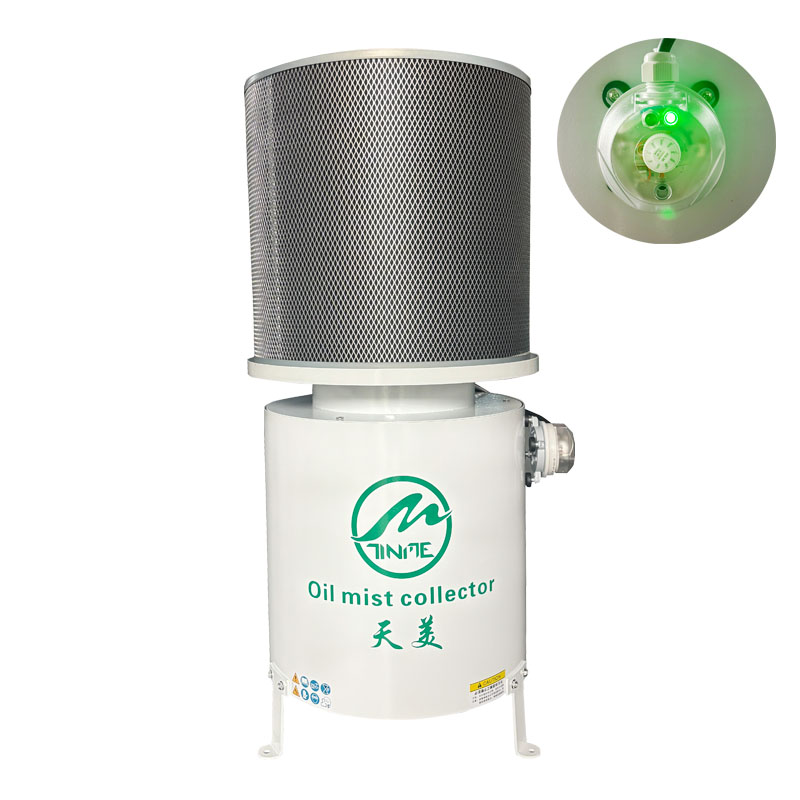

CNC Oil Mist Collector for Lathe & Milling Machines
TINME centrifugal oil mist collectors are designed for CNC lathes, machining centers, Swiss-type lathes, grinding machines and other enclosed metalworking equipment.
600-2,000 m3/hFour airflow options at 50Hz
Workshop challenges
Control airborne mist at the machine
Oil and coolant mist can reduce visibility, settle on nearby surfaces and make workshop air harder to manage. Source capture helps keep contamination inside a controlled filtration path.
Separate and coalesce
Centrifugal force combines small oil droplets and returns collected liquid through the drainage path.
Filter the remaining mist
A multilayer filter captures smaller particles, with optional HEPA post-filtration for demanding applications.
Product range
CNC oil mist collector models
Compare four airflow sizes. Each model is available as a standard A version or an A+ version with an added filter monitoring function.
TM-250A
TM-250A CNC Oil Mist Collector
TINME TM-250A centrifugal CNC oil mist collector with 600 m3/h nominal airflow at 50Hz.
- Airflow
- 600 m3/h
- Noise
- <68 dB(A)
- Housing
- Metal housing
- Motor
- 0.25 kW
TM-370A
TM-370A CNC Oil Mist Collector
TINME TM-370A centrifugal CNC oil mist collector with 1,000 m3/h nominal airflow at 50Hz.
- Airflow
- 1,000 m3/h
- Noise
- <74 dB(A)
- Housing
- Metal housing
- Motor
- 0.37 kW
TM-750A
TM-750A CNC Oil Mist Collector
TINME TM-750A centrifugal CNC oil mist collector with 1,400 m3/h nominal airflow at 50Hz.
- Airflow
- 1,400 m3/h
- Noise
- <74 dB(A)
- Housing
- Metal housing
- Motor
- 0.75 kW
TM-1100A
TM-1100A CNC Oil Mist Collector
TINME TM-1100A centrifugal CNC oil mist collector with 2,000 m3/h nominal airflow at 50Hz.
- Airflow
- 2,000 m3/h
- Noise
- <77 dB(A)
- Housing
- Metal housing
- Motor
- 1.1 kW
Machine visibility solutions

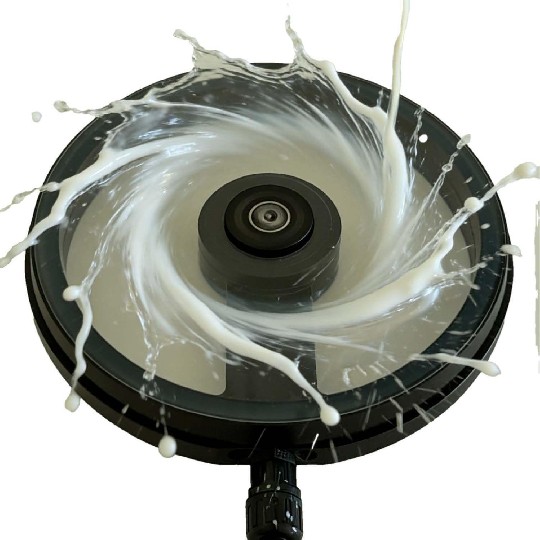

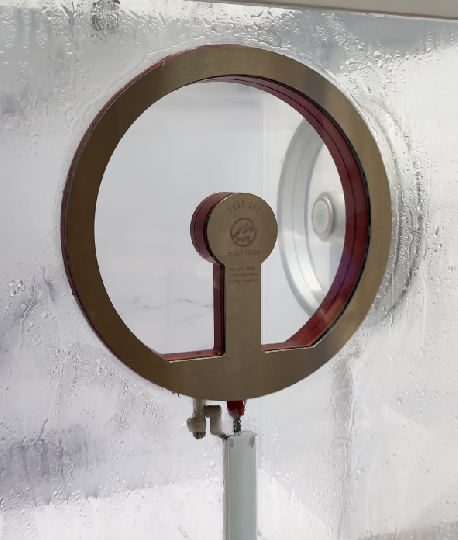

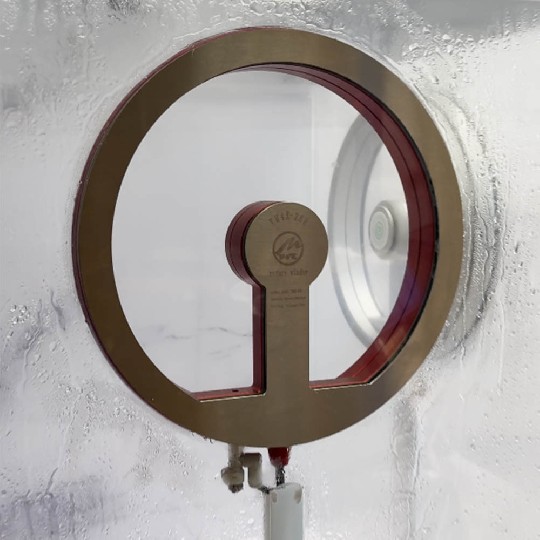

Rotary Clear View Window
Clear Visibility Inside CNC Machines — Even Under Heavy Coolant Spray
The TINME Rotary Clear View Window is designed for CNC machine tools where coolant, cutting oil or mist constantly covers the viewing window.
Using high-speed rotation, the clear disc continuously throws coolant and oil away from the viewing surface, helping operators maintain a clear view of the machining process.
For CNC lathes, Swiss type lathes, machining centers, grinding machines, milling machines and other enclosed CNC machines.
Explore Rotary Clear View Window
Applications
Explore oil mist collection by machine type
CNC Lathes
Source capture for enclosed turning applications.
Swiss-Type Lathes
Compact installations for precision turning.
Machining Centers
Airflow options for milling, drilling and tapping.
Grinding Machines
Assessment for mist combined with fine particulate.
Installation experience

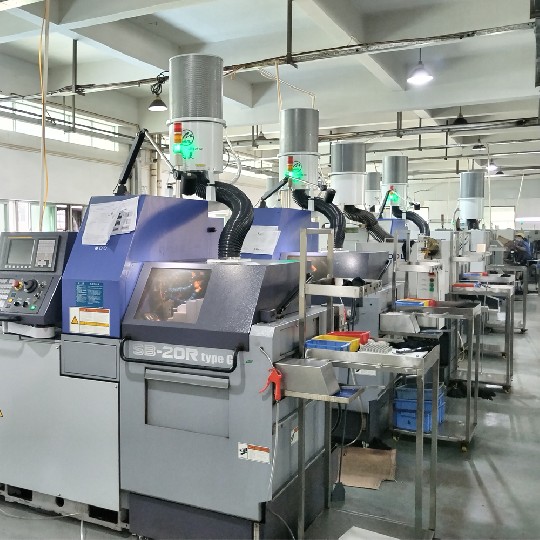

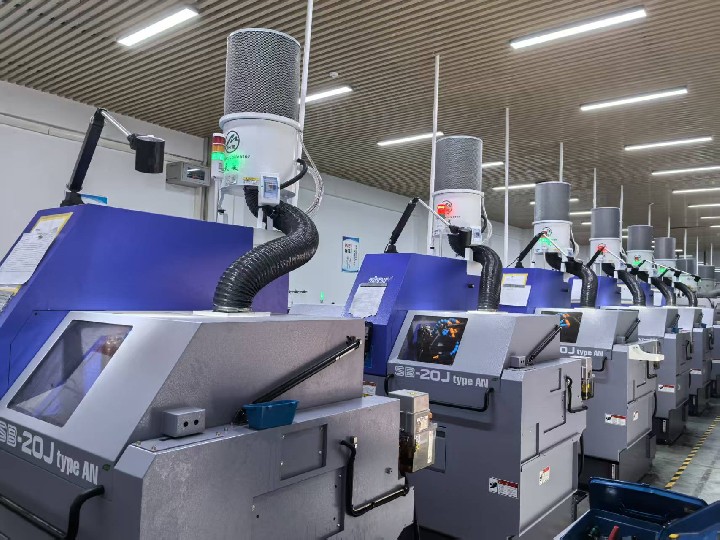

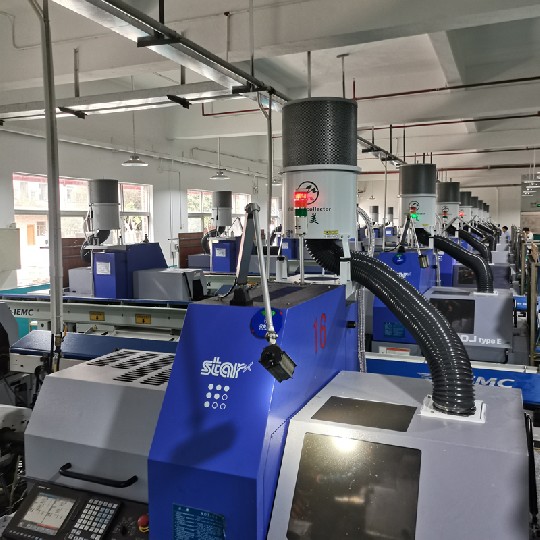

Machine-mounted and stand-mounted solutions
Compare documented machine-top, side-bracket and floor-stand installations. Each case includes the installed TINME model, cutting fluid, HEPA configuration and site photograph.
Filters and installation support
Oil mist collector accessories
Match post-filters, replacement elements and mounting supports to the collector model and installation conditions.
Post-filtration
HEPA Post-Filter
Optional final-stage particle filtration for a confirmed collector configuration. HEPA filtration does not remove gaseous vapors.
60Hz CNC Oil Mist Collectors for International Workshops
TINME A and A+ oil mist collectors support 3-phase 220V/380V, 50Hz/60Hz power configurations. For North America, Japan and other markets using 60Hz, match the selected motor configuration to the voltage and frequency at your installation.
The published 600–2,000 m³/h airflow range is rated at 50Hz. Send your available voltage, machine model and required airflow to receive the appropriate 60Hz model specifications and installation recommendation.
Request a 60Hz Model Recommendation
